Requirement
1. Download MediaTek USB VCOM drivers
2. Download USB Deview ( 32 bit here : 64 bit here )
Important notice for windows 8, 8.1 and 10 PC users
You need to disable drivers signature verification for this to work smoothly, see http://forum.hovatek.com/thread-752.html for the procedure
Note
If you have access to a working phone of the same model then remove the battery from the working phone and connect to PC via USB cord. Mediatek preloader VCOM drivers should be automatically installed so you can skip the rest of this guide. Proceed if automatic installation doesn't work
Procedure
# See the video tutorial below or @ http://youtu.be/sADkzyI8Z5Q
1. Install USBDeview and use it to uninstall all Vcom, Mediatek and Preloader drivers (see https://forum.hovatek.com/thread-7660.html )
1b. Extract the contents of the Mediatek USB VCOM file above

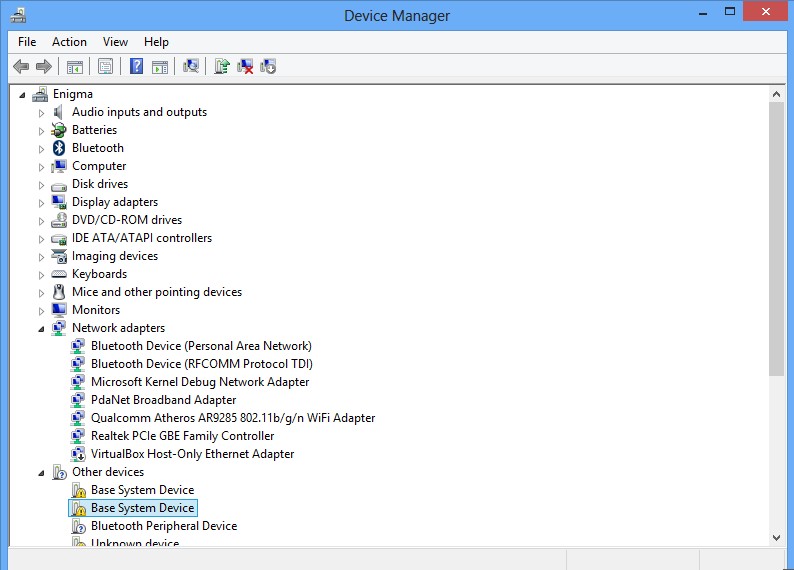

2. In Windows, go to Control Panel and open Device Manager
3. Click any of the device groups (any of the items on the list) you see
there, then from Action menu at the top, select Add legacy hardware

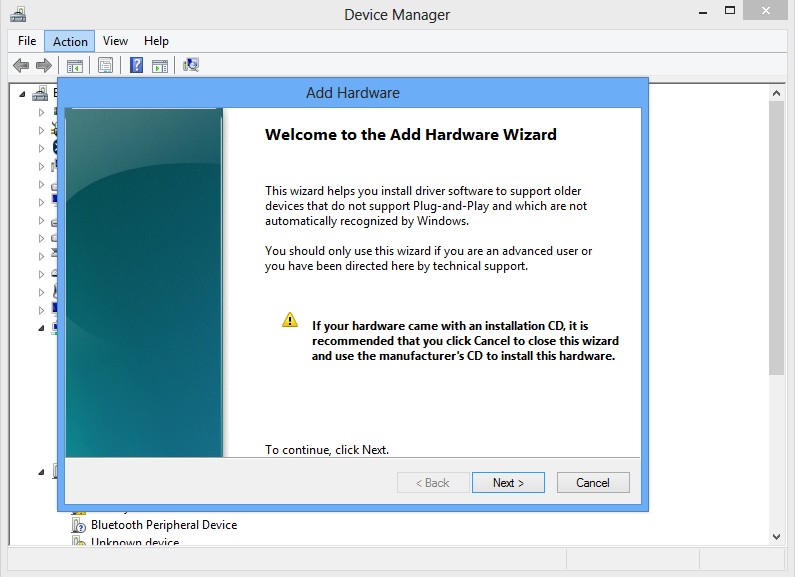

4. The Add hardware wizard will be launched, click Next

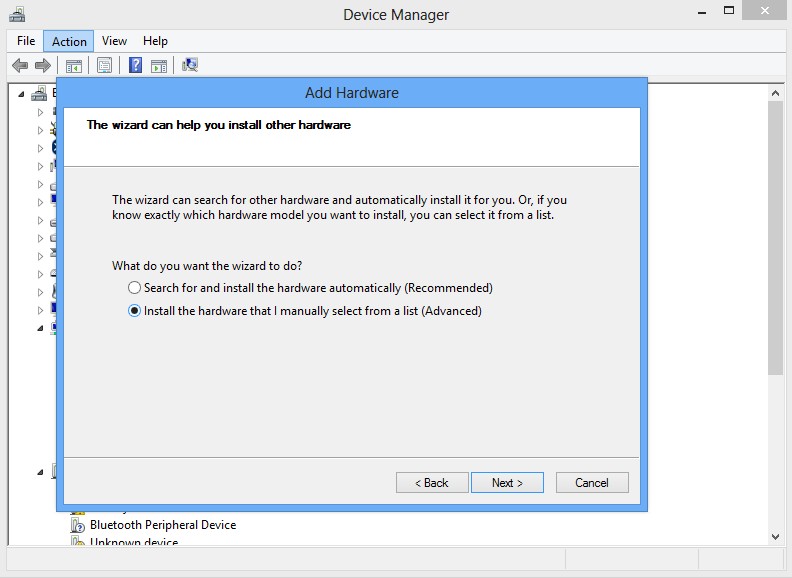

5. Select Install the hardware that I manually select from a list (Advanced) and click Next
6. Click Next
6b. Click Have Disk...

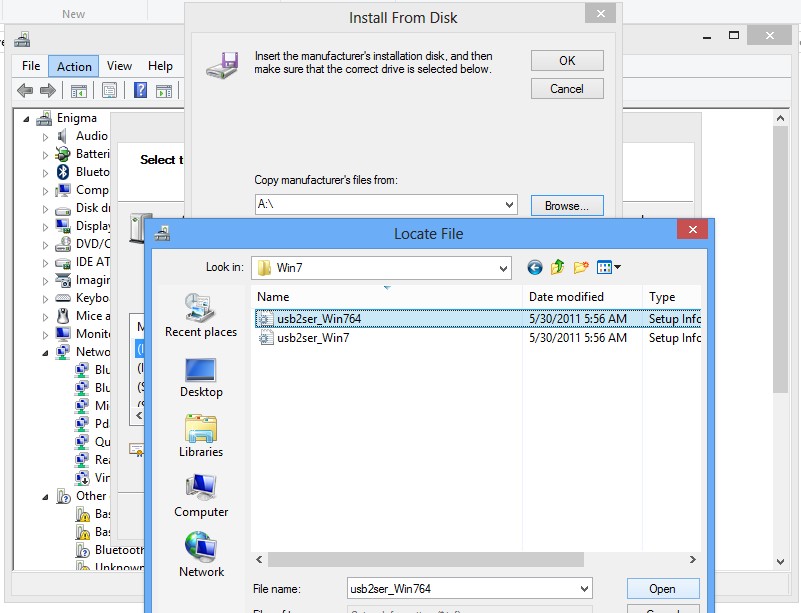

7. Click Browse... and locate your driver's .inf file then select it (the .inf you're to select is located in drivers > USB Vcom driver > your OS) .
* Ensure to select the 64 bit .inf if your PC is 64 bit and the other if your PC is a 32 bit PC
* If you're using a Windows 8 PC then install the Windows 7 drivers

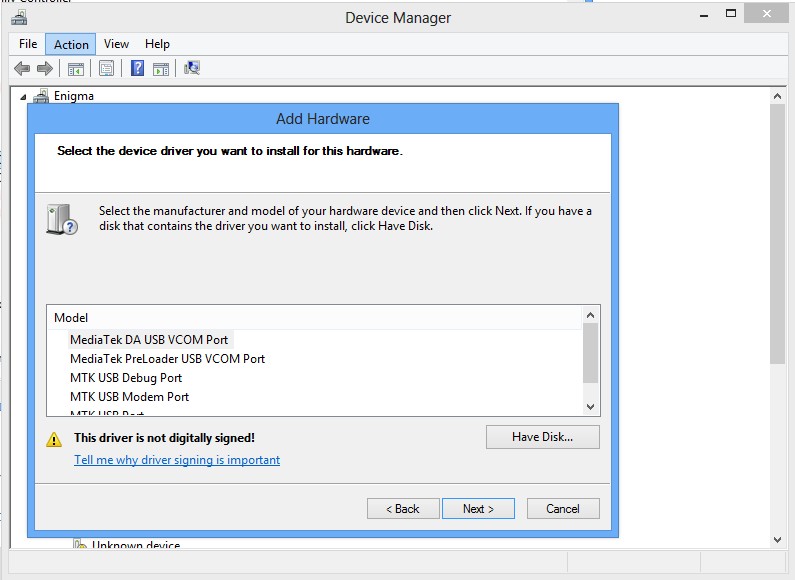

8. Click Open and OK. You will see the drivers listed

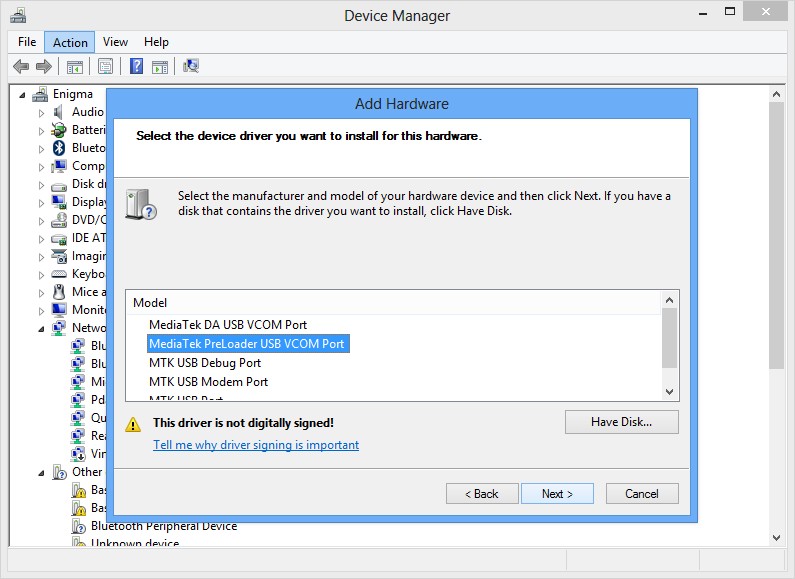

9. Select your driver there (select Mediatek Preloader USB VCOM Port) then Click Next
9b. Click Next

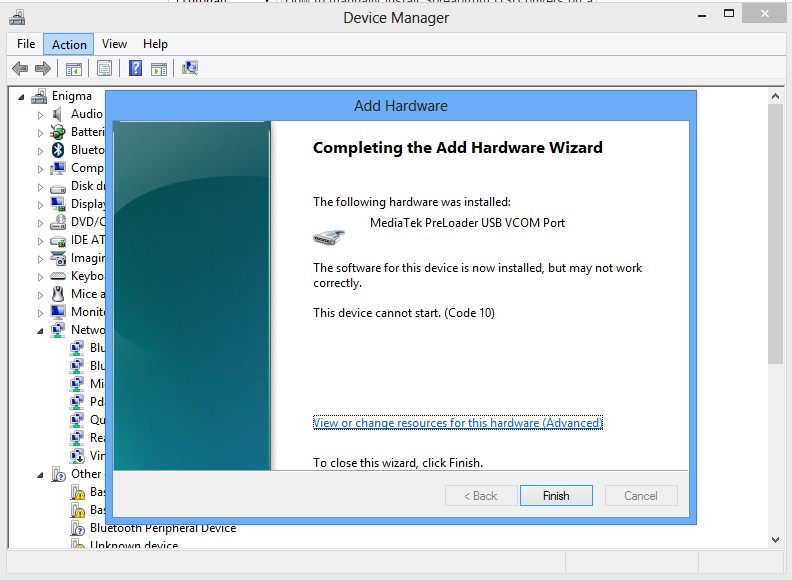

10. Click Finish. Ignore the Code 10 error. You're getting it because you have installed an unsigned driver
10b. Your drivers should now appear on the list. Ignore the yellow
warning triangle. You're getting it because you have installed an
unsigned driver
Note
* If SP flash tool or other software still dont detect your phone then also install Mediatek DA VCOM (consider installing more from the list of drivers one at a time if need be )
* If you get the code 10 error after the installation, simply ignore it and proceed with SP flash tool. You're only getting that error because the driver is not digitally signed.
